2pipe 4pipe type ceiling concealed Fan Coil for green house hotel restaurant

2pipe 4pipe type ceiling concealed Fan Coil for green house hotel restaurant's climate solution
  • FP series

  • Jindun



JD-FP34 JD-FP51 JD-FP68 JD-FP85 JD-FP102 JD-FP136 JD-FP170 JD-FP204 JD-FP238
Air Flow
High 340 510 680 850 1020 1360 1700 2040 2380
Mid 255 383 510 638 765 1020 1275 1530 1785
Low 170 255 340 425 510 680 850 1020 1190
Cooling power
High 1800 2700 3600 4500 5400 7200 9000 10800 12600
Mid 1620 2440 3290 4120 4850 6550 8190 9730 11580
Low 1310 2010 2650 3320 3900 5300 6610 7860 9350
Heating power
High 2700 4050 5400 6750 8100 10800 13500 16200 18900
Mid 2350 3520 4530 6040 6850 9260 11740 14140 16360
Low 1620 2470 3130 4170 4740 6500 8180 9710 11290
Temperature of cold water 7~12°C
Temperature of hot water supplied 60°C
Voltage Ac 220V/50Hz


overall dimension of fancoil 02.jpg

JD-FP34 JD-FP51 JD-FP68 JD-FP85 JD-FP102 JD-FP136 JD-FP170 JD-FP204 JD-FP238
A 740 840 940 1040 1140 1440 1640 1740 1940
B 480 580 680 780 880 1180 1380 1520 1720
13 16.5 18.1 19.4 20.6 24.2 26.1 27.9 29.6

With safe, energy-conservation, long-life, no feeding lubricating oil needed motor and over heating protection device, the Fan Coil has few breakdown and easy maintained.
 The fan is energy-saving and has low power and noise, high efficiency. With tempered and hard chrome plated shaft, the low power and high efficiency motor run smoothly. The steel impeller has high efficiency and low noise after dynamic balance test.
 Light weight, high strength, beautiful and durable.

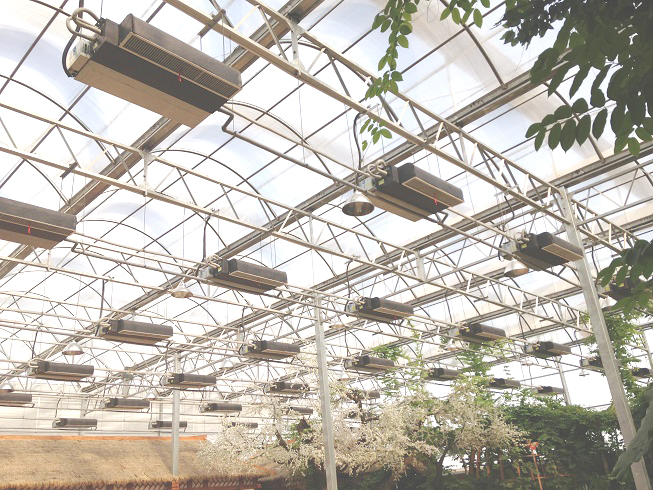

  The fan coil can be widely used in high-rise buildings, such as hotel, office building, hospital, apartment, villas, shopping mall and so on, and other low noise, quickly controlled and air conditioned rooms.

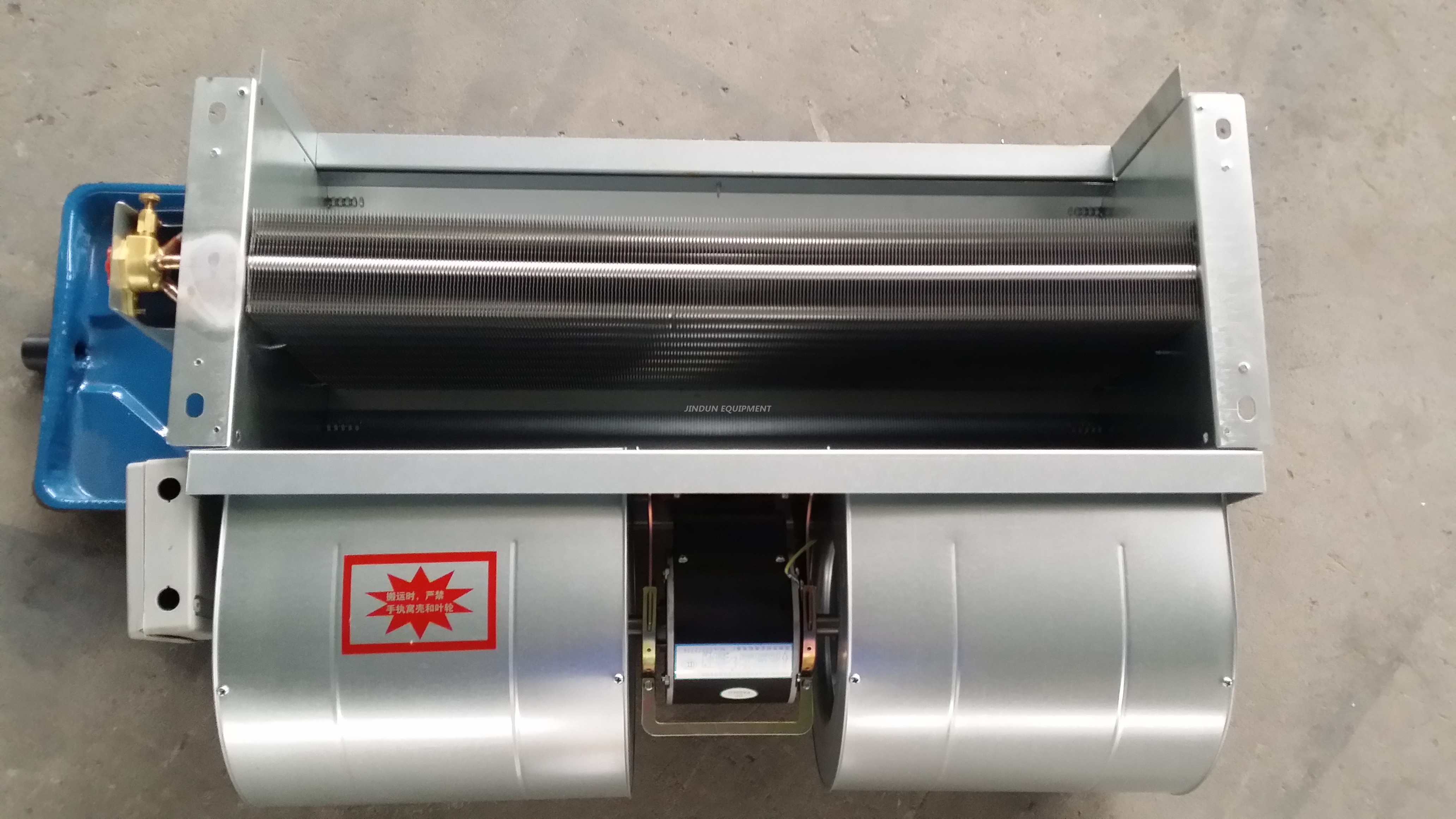

Concealed   ceiling-mounted fancoil  blow from front and  have suction from rear

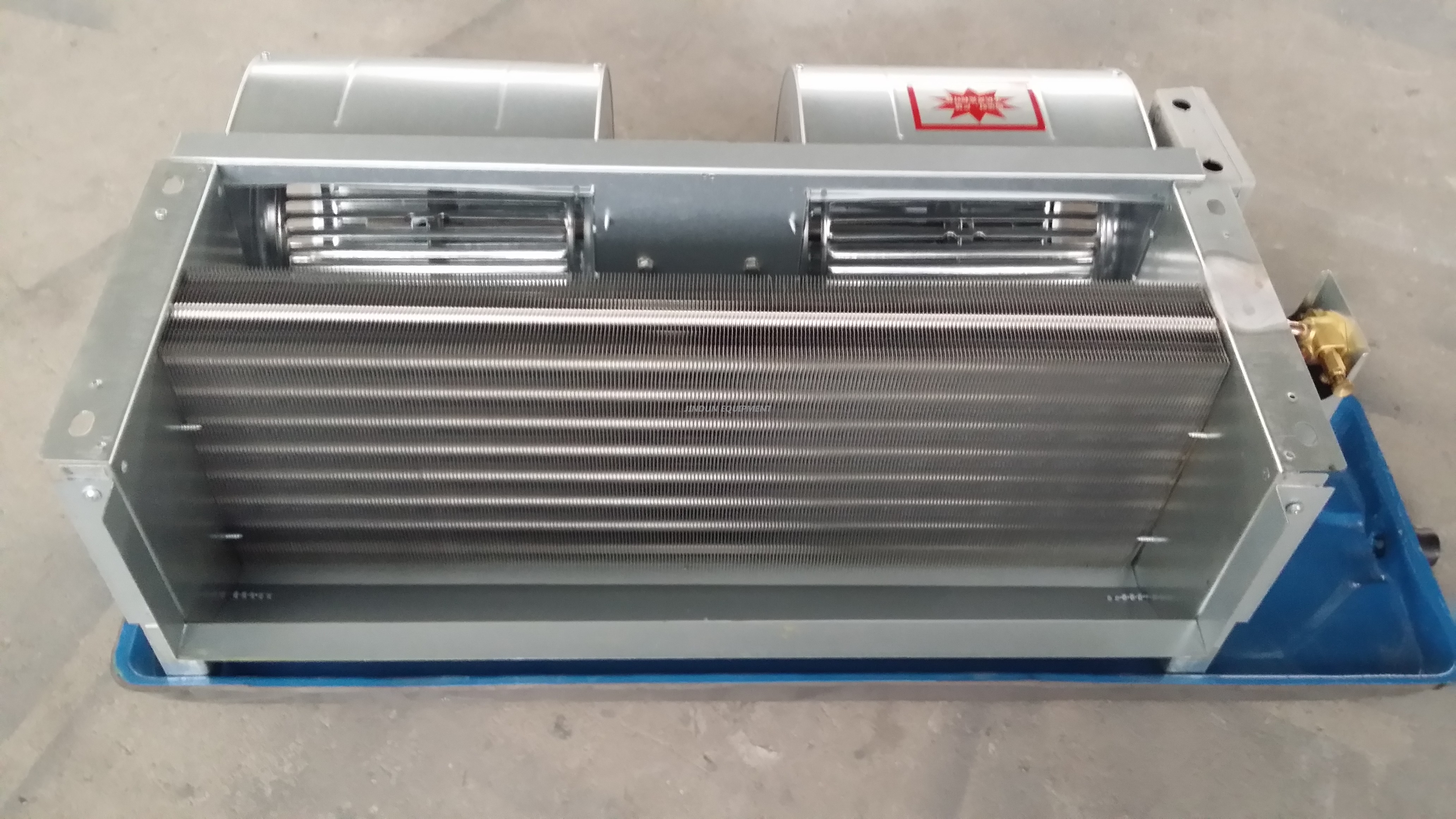

The batteries of the fan coils  consist of copper pipe aluminum fins. 3 rows for cooling + 1 row for   heating.

Fan and cabinet are galvanized steel.
The fan motor is 3 speeds, IP20 - 220 V / 1 Ph / 50 Hz.
6 mm washable type nylon   filter. The filters are of easy-to-replace, slider type.
The coil is insulated   with Fiberglass

Drain pan is die-formed   steel and the inner surface is white coated.
Drain pipe is on  connection side
