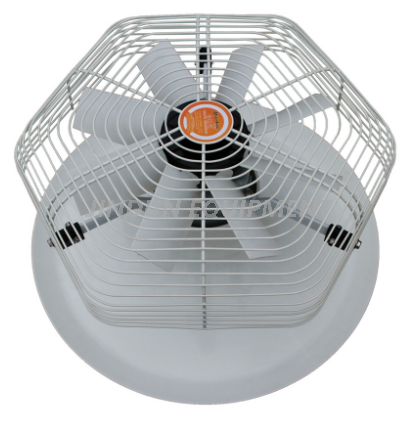

Air Vertical Circulation Fan for Greenhouse

The vertical circulation fan is to circulate the air in the vertical direction , reduce the temperature difference between the upper and lower indoors, and make the indoor temperature uniform.

  • JDV-01

Quantity:
Inquire Add to Basket

Model Input power
W
Speed
RPM
 		 Air flow
M³/h		 Recommended
distance
m		 Voltage

JDV-01 370 950 5500 18 380V/220V
Customized
Top cover is pp materials,anti-corrosion
Blades is high quality nylon,low noise
Blades support is aluminium with plastic treatment,no rust
Bracket is 304 stainless steel, durable and no rust
Packing size :700*700*400mm, weight 13 kgs

Application for Chicken House:

1. Circulate the air in the chicken house vertically to reduce the temperature difference between the upper and lower sides of the chicken house ,facilitate the temperature control of the chicken house ,and increase the feed-to-meat ratio or feed-to-egg ratio.
2. Reuse the hot air on the top of the chicken house to reduce heating costs
Application for Greenhouse:

1.Circulate the air in the greenhouse vertically to reduce the temperature difference between the upper and lower sides of the greenhouse, facilitate the temperature control of the greenhouse.
2. Reuse the hot air on the top of the greenhouse to reduce heating costs.
