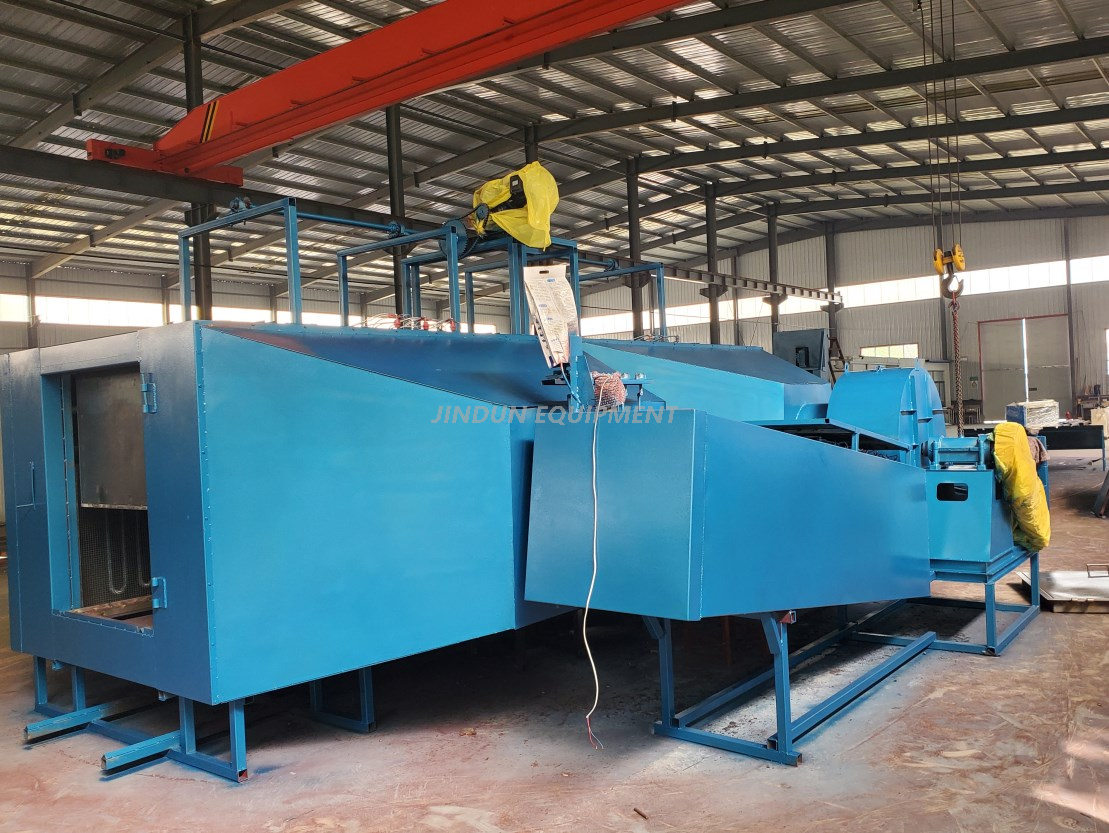

Cooling Pad Production Line Kraft Paper cooling pad making machine

1.Working Voltage: 380V 50hz 3 phase.

2.One hour can produce 3-4 cubic meter cooling pad

3.Total power of the machinery: around 200kw

(Oven machine is around 160kw in total, and Corrugating machine is around 30kw).

4. Total produce line need around 5-7 workers.

5. The raw paper needs to be stored in a dry environment, otherwise it will be difficult to cut.
  • Length of pads: 2600mm
Quantity:



Items
Components
Power
1
Paper roll machine
2 kw
2
Cutting Machine
2KW
3
Corrugated Machine
32KW
4
Gluing Machine
2.2KW
5
Oven Machine
160KW
6
Sawing Machine
2KW
7
Control Cabinet


44444

55551111188888222
