ETL LISTED MOTOR FOR EXHAUST FANS/COOLING FANS/Mining machine

control temperture inside together with cooling pad through Negative preesure of air
used for many different cooling purposes but is particularly suitable for cooling of livestock buildings and greenhouses when higher air velocity is required.
ETL LISTED MOTOR FOR EXHAUST FANS

  • ETL LISTED MOTOR

  • Jindun

  • Payment terms: TT, LC, West Union
  • Delivery terms: FOB, CIF, CFR
  • Price: US$50~300/set, FOB Qingdao
  • Min. Order: 1*20GP container
  • Delivery time: 7~20days
Quantity:
Inquire Add to Basket

Technical parameter
Model Drive method Dia. of blades
mm		 Speed of blades
RPM		 Motor speed
RPM		 Air flow
m3/h		 Total pressure
Pa		 Noise
db		 Input power
W		 Rated Voltage
V		 Overall dimensions
Height*Width*Thickness
mm
JDFH-600 Direct 500 1400 1400 5700 55 ≤70 370 380 600*600*370
JDFH-800 Belt 710 650 1400 18000 60 ≤60 370 380 800*800*400
JDFH-1000 Belt 900 610 1400 25000 70 ≤70 750 380 1000*1000*400
JDFH-1100 Belt 1000 600 1400 32500 70 ≤70 750 380 1100*1100*400
JDFH-1220 Belt 1100 460 1400 38000 73 ≤70 750 380 1220*1200*400
JDFH-1380 Belt 1270 439 1400 44000 56 ≤70 1100 380 1380*1380*400
JDFH-1530 Belt 1400 325 1400 55800 60 ≤70 1500 380 1530*1530*400

Overall dimensions available
overall dimension of cooling fan JDFHseries.jpg
Fan model Noise Dimension  mm
At 7m distance A B C D E F
JDFH-600 (20”) 68 600 600 370 237 520 50
JDFH-800 (24”) 65 800 800 400 133 400 190
JDFH-1000 (35”) 65 1000 1000 400 133 500 250
JDFH-1100 (40”) 64 1100 1100 400 133 460 320
JDFH-1220 (43”) 62 1220 1220 400 133 705 257
JDFH-1380 (50”) 60 1380 1380 400 133 1000 190
JDFH-1530 (55”) 59 1530 1530 400 133 900 315

Airflow Curve
air flow of cooling fan JDFHseries.jpg

blade of cooling fan JDFHseries.jpg

K rupp stainless steel blade, large air volume, no deformation, no broken
no dust, attractive and durable.
heavy hammer of cooling fan JDFHseries.jpg
High strength nylon swung drop hammer opening device can ensure the shutters opening and closing flexibly.

belt of cooling fan JDFPseries.jpg
Type B belt imported from Japan, ensure long service life.

motor of cooling fan JDFHseries.jpg
Siemens motor and Chinese famous motor are available.

Voltage and frequency can be customized.

belt pulley of cooling fan JDFH series.jpg
Fan belt pulley and flange, with light weight and lower vibration, are made of high strength aluminum-magnesium alloy by die-casting.
Blast-sanding treatment and special three reinforced ribs pulley design for attractive appearance and eliminate internal stress.


A Frame
Frame of Exhaust Cooling fan 0副本.jpg

B Heavy Hammer device
Heavy hammer device of JDFH Exhaust Cooling fan副本.jpg

Heavy hammer device of JDFH Exhaust Cooling fan 2副本.jpg

Heavy hammer device of JDFH Exhaust Cooling fan 0副本.jpg

C Opening Device

Opening device of JDFH Exhaust Cooling fan副本.jpg





D  Blade
Blade of JDFH Exhaust Cooling fan副本.jpg

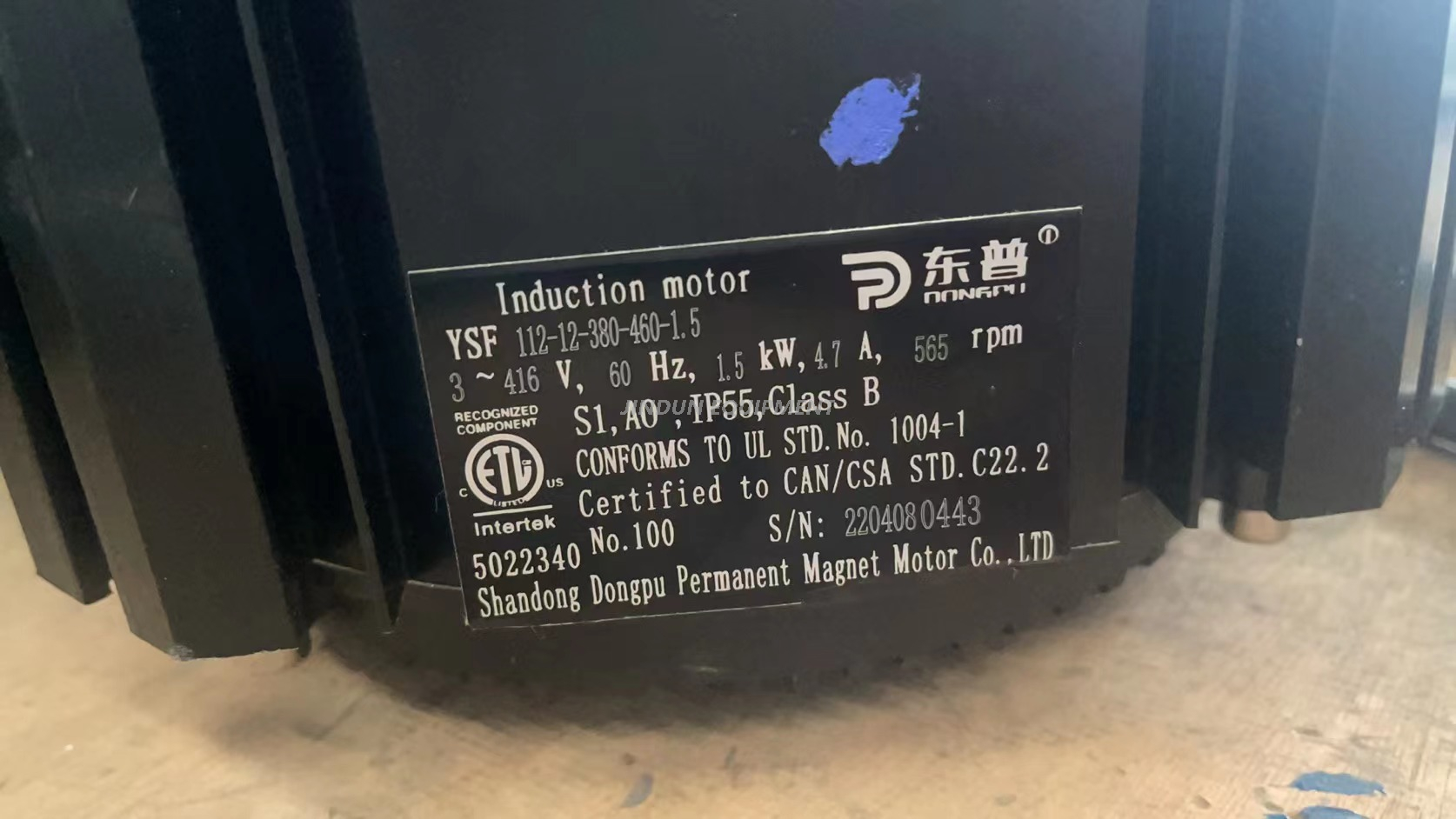

E Motor
mmexport1651283473872

C ompany Information
Shandong JINDUN Energy Conservation & Environmental Protection Equipment Co., Ltd., located in Dongxia industry estate of Qingzhou city, with 20,000m2 area, is a professional manufacturer of temperature control equipment for agriculturial and industrial ventilation, cooling or heating system, such as exhaust fan, cooling pad, air condition generator and boiler.
Since 2005 , as the market leader in manufacturer  exhaust fan, evaporative cooling pad, air condition generator, hot air stoven and hot water boiler , we provide not only high quality goods but also more additional benefits for our clients and partners.
With advanced production equipment, superb manufacturing process, strict management and with good quality product, we have gotten the certificate of ISO9001 and CE
Under our business ideas "Mutual benefit is based on sincerity ", our goods are sold better and better. Now we are exporting more than 100 countries and areas all over the world. Our annual output is more than 20 million US DOLLAR.
Facing the market, our company will rely on a strong unity, forge ahead with determination and a leadership and workforce to meet the challenge, in fierce competition in the market ahead waves.
JINDUN will be your best business partner.
  W hat We Have
l  China Leading Producing Technology
l  Super High Quality
l  Competitive Price
l  Big Production Ability
l  Fast Delivery
l  Ten Years' Export Experience
l  Excellent Sale and After-sale Service
l  OEM Available
  F AQ
1.Are you a factory or a trading company?
JINDUN EQUIPMENT CO., LTD. is a professional Manufacturer of temperature control equipment since 2005.
2.Can I be your agent?
Yes, welcome to deep cooperation. We have big promotion of JINDUN brand in the market now.
For the details please contact with our overseas manager.
 3.Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
4.Are the products tested before shipping?
Yes, all of our products were qualified before delivery. We test every batch every day.
5.What's your quality guarantee?
We will offer client one year quality guarantee time.
6.What's benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
JINDUN Equipment ’ s super high quality products will bring you success business.
Model No. ISO9001:2008 high quality Temperature control equipment
Place of Origin Qingzhou City, Shandong Province, China
Brand Name JINDUN Or OEM
Products range Exhaust Fan, ventilation cooling Fan, Evaporative cooling pad, Air condition generator, Hot air stoven, Hot water Boiler.
Certificate ISO9001; CE;TUV; SGS
Main Market Asia, Africa, South America, Middle East, Europe, etc
Payment term T/T,L/C
MOQ 1 * 20GP
Delivery Time 15 days
