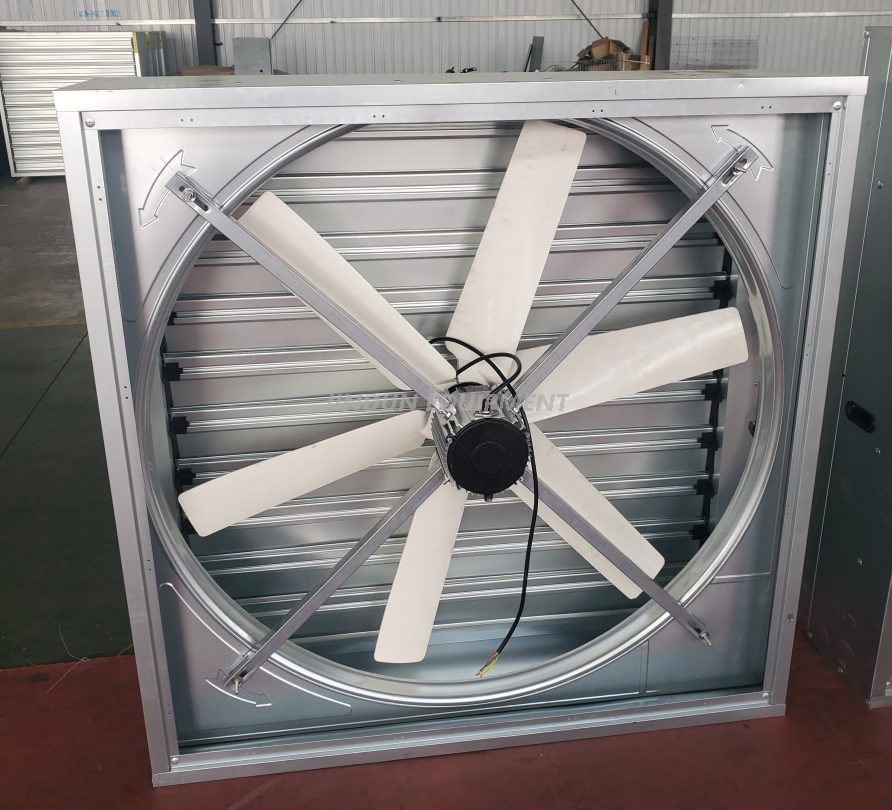

JDFH
JDFH-1000
JDFH-1000
Quantity: | |
---|---|
Technical parameter
Model | Drive method | Dia. of blades mm | Speed of blades RPM | Motor speed RPM | Air flow m3/h | Total pressure Pa | Noise db | Input power W | Rated Voltage V | Overall dimensions Height*Width*Thickness mm |
JDFH-620 | Direct | 500 | 1400 | 1400 | 5700 | 55 | ≤70 | 250 | 380 | 620*620*400 |
JDFH-780 | Belt | 710 | 650 | 1400 | 18000 | 60 | ≤60 | 370 | 380 | 800*800*400 |
JDFH-1000 | Belt | 900 | 610 | 1400 | 25000 | 70 | ≤70 | 750 | 380 | 1000*1000*400 |
JDFH-1100 | Belt | 1000 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 380 | 1100*1100*400 |
JDFH-1220 | Belt | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 750 | 380 | 1220*1200*400 |
JDFH-1380 | Belt | 1270 | 439 | 1400 | 44000 | 56 | ≤70 | 1100 | 380 | 1380*1380*400 |
JDFH-1530 | Belt | 1400 | 325 | 1400 | 55800 | 60 | ≤70 | 1500 | 380 | 1530*1530*400 |
Overall dimensions available
Fan model | Noise | Dimension mm | |||||
At 7m distance | A | B | C | D | E | F | |
JDFH-620 (20”) | 68 | 620 | 620 | 400 | 237 | 520 | 50 |
JDFH-780 (24”) | 65 | 780 | 780 | 400 | 133 | 400 | 190 |
JDFH-1000 (35”) | 65 | 1000 | 1000 | 400 | 133 | 500 | 250 |
JDFH-1100 (40”) | 64 | 1100 | 1100 | 400 | 133 | 460 | 320 |
JDFH-1220 (43”) | 62 | 1220 | 1220 | 400 | 133 | 705 | 257 |
JDFH-1380 (50”) | 60 | 1380 | 1380 | 400 | 133 | 1000 | 190 |
JDFH-1530 (55”) | 59 | 1530 | 1530 | 400 | 133 | 900 | 315 |
Airflow Curve
Technical parameter
Model | Drive method | Dia. of blades mm | Speed of blades RPM | Motor speed RPM | Air flow m3/h | Total pressure Pa | Noise db | Input power W | Rated Voltage V | Overall dimensions Height*Width*Thickness mm |
JDFH-620 | Direct | 500 | 1400 | 1400 | 5700 | 55 | ≤70 | 250 | 380 | 620*620*400 |
JDFH-780 | Belt | 710 | 650 | 1400 | 18000 | 60 | ≤60 | 370 | 380 | 800*800*400 |
JDFH-1000 | Belt | 900 | 610 | 1400 | 25000 | 70 | ≤70 | 750 | 380 | 1000*1000*400 |
JDFH-1100 | Belt | 1000 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 380 | 1100*1100*400 |
JDFH-1220 | Belt | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 750 | 380 | 1220*1200*400 |
JDFH-1380 | Belt | 1270 | 439 | 1400 | 44000 | 56 | ≤70 | 1100 | 380 | 1380*1380*400 |
JDFH-1530 | Belt | 1400 | 325 | 1400 | 55800 | 60 | ≤70 | 1500 | 380 | 1530*1530*400 |
Overall dimensions available
Fan model | Noise | Dimension mm | |||||
At 7m distance | A | B | C | D | E | F | |
JDFH-620 (20”) | 68 | 620 | 620 | 400 | 237 | 520 | 50 |
JDFH-780 (24”) | 65 | 780 | 780 | 400 | 133 | 400 | 190 |
JDFH-1000 (35”) | 65 | 1000 | 1000 | 400 | 133 | 500 | 250 |
JDFH-1100 (40”) | 64 | 1100 | 1100 | 400 | 133 | 460 | 320 |
JDFH-1220 (43”) | 62 | 1220 | 1220 | 400 | 133 | 705 | 257 |
JDFH-1380 (50”) | 60 | 1380 | 1380 | 400 | 133 | 1000 | 190 |
JDFH-1530 (55”) | 59 | 1530 | 1530 | 400 | 133 | 900 | 315 |
Airflow Curve
Krupp stainless steel blade, large air volume, no deformation, no broken
no dust, attractive and durable.
High strength nylon swung drop hammer opening device can ensure the shutters opening and closing flexibly.
Type B belt imported from Japan, ensure long service life.

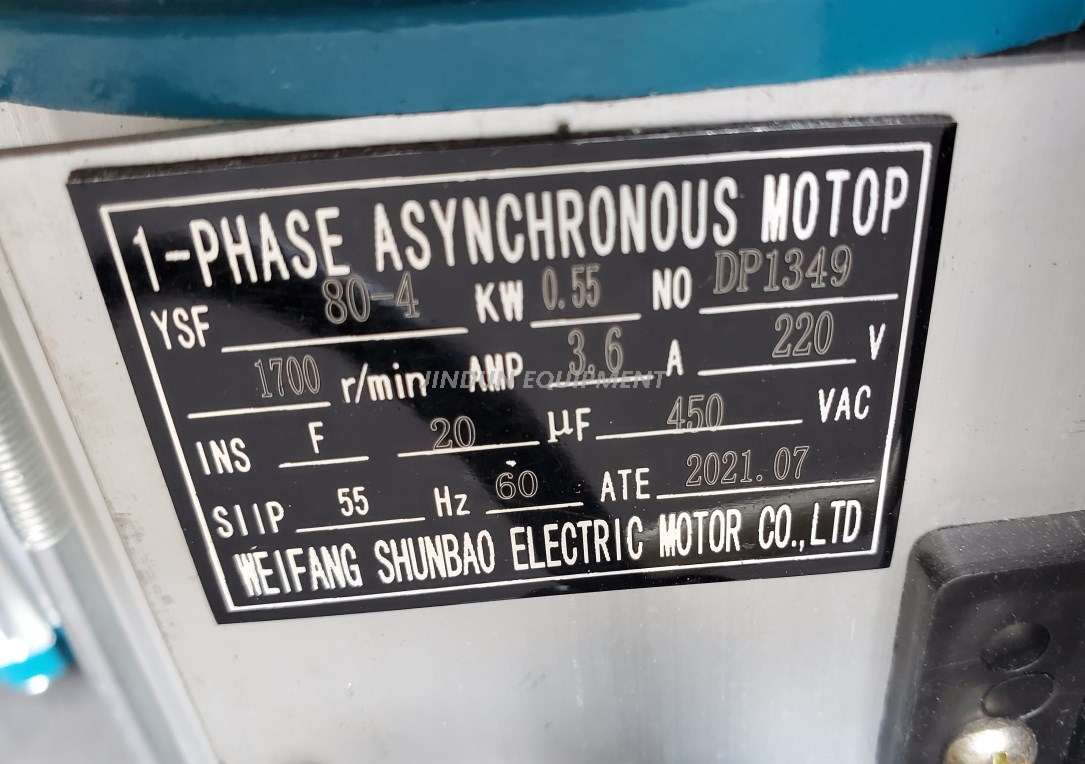

Siemens motor and Chinese famous motor are available.
Voltage and frequency can be customized.
Fan belt pulley and flange, with light weight and lower vibration, are made of high strength aluminum-magnesium alloy by die-casting.
Blast-sanding treatment and special three reinforced ribs pulley design for attractive appearance and eliminate internal stress.
Krupp stainless steel blade, large air volume, no deformation, no broken
no dust, attractive and durable.
High strength nylon swung drop hammer opening device can ensure the shutters opening and closing flexibly.
Type B belt imported from Japan, ensure long service life.
Siemens motor and Chinese famous motor are available.
Voltage and frequency can be customized.
Fan belt pulley and flange, with light weight and lower vibration, are made of high strength aluminum-magnesium alloy by die-casting.
Blast-sanding treatment and special three reinforced ribs pulley design for attractive appearance and eliminate internal stress.
A Frame
B Heavy Hammer device
C Opening Device
D Blade
A Frame
B Heavy Hammer device
C Opening Device
D Blade
