Home » Products » Ventilation fan » Push-pull Type Axial Flow Ventilation Cooling Fan for greenhouse

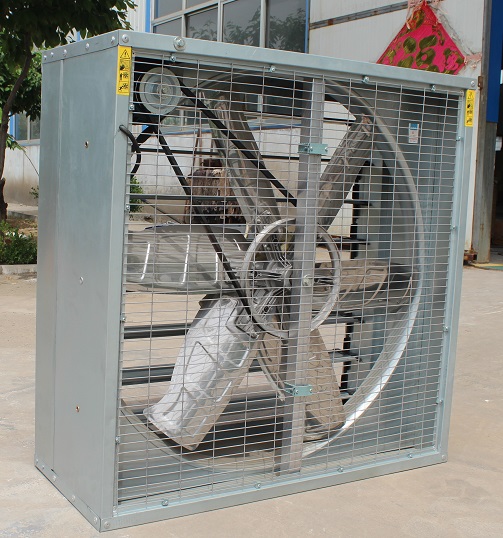

Push-pull Type Axial Flow Ventilation Cooling Fan for greenhouse

control temperture inside together with cooling pad through Negative preesure of air
used for many different cooling purposes but is particularly suitable for cooling of livestock buildings and greenhouses when higher air velocity is required.
  • Jindun
  • Payment terms: TT, LC, West Union
  • Delivery terms: FOB, CIF, CFR
  • Price: US$190~250/set, FOB Qingdao
  • Min. Order: 1*20GP container
  • Delivery time: 7~20days
Quantity:
Technical parameter
Model Drive method Dia. of blades
mm
Speed of blades
RPM
Motor speed
RPM
Air flow
m3/h
Total pressure
Pa
Noise
db
Input power
W
Rated Voltage
V
Overall dimensions
Height*Width*Thickness
mm
JDFP-750 Direct 600(24”) 960 960 10600 75 ≤70 370 380 750*750*510
JDFP-1000 Belt  910(36”) 438 1400 21000 57 ≤65 550 380 1000*1000*450
JDFP-1380 Belt  1270(50”) 437 1400 44000 57 ≤65 1100 380 1380*1380*450

Overall dimensions available

   Cooling fan overall dimension JDFPseries.jpg
Fan model Noise Dimension  mm
At 7m distance A B C D E F
JDFP-750 (24”) 69 750 750 510 370 140 620
JDFP-1000 (36”) 67 1000 1000 450 305 145 935
JDFP-1380 (50”) 59 1380 1380 450 305 145 1290

Airflow Curve
air flow curve of JDFPseries cooling fan.jpg
blade of cooling fan JDFPseries.jpg

K rupp stainless steel blade, large air volume, no deformation, no broken
no dust, attractive and durable.
centrifugal system of cooling fan JDFPseries.jpg

Centrifugal system can open the shuttles at complete 90degree to ensure
the lowest air resistance and biggest air volume.

belt of cooling fan JDFPseries.jpg

Type B belt imported from Japan, ensure long service life.

motor of cooing fan JDFPseries.jpg

Siemens motor and Chinese famous motor are available.
Voltage and frequency can be customized.

pulleywheel of cooling fan JDFPseries.jpg

Fan belt pulley and flange, with light weight and lower vibration, are made of high strength aluminum-magnesium alloy by die-casting.
Blast-sanding treatment for attractive appearance and eliminate internal stress

Installation diagram
installation of JDFPseries cooling fan.jpg

A  Frame
Frame of Exhaust Cooling fan副本.jpg

B Push-Pull device
Push-pull device of JDFP Exhaust cooling fan副本.jpg

Push-pull device of JDFP Exhaust cooling fan 0副本.jpg

C Blade
Blade of JDFP Exhaust Cooling fan副本.jpg

D Opening device
opening device of JDFP Exhaust Cooling fan副本.jpg

Opening device of JDFP Exhaust Cooling fan 0副本.jpg

Opening device of JDFP Exhaust Cooling fan 2副本.jpg

C ompany Information
Shandong JINDUN Energy Conservation & Environmental Protection Equipment Co., Ltd., located in Dongxia industry estate of Qingzhou city, with 20,000m2 area, is a professional manufacturer of temperature control equipment for agriculturial and industrial ventilation, cooling or heating system, such as exhaust fan, cooling pad, air condition generator and boiler.
Since 2005 , as the market leader in manufacturer  exhaust fan, evaporative cooling pad, air condition generator, hot air stoven and hot water boiler , we provide not only high quality goods but also more additional benefits for our clients and partners.
With advanced production equipment, superb manufacturing process, strict management and with good quality product, we have gotten the certificate of
ISO9001 and CE
Under our business ideas "Mutual benefit is based on sincerity ", our goods are sold better and better. Now we are exporting more than 100 countries and areas all over the world. Our annual output is more than 20 million US DOLLAR.
Facing the market, our company will rely on a strong unity, forge ahead with determination and a leadership and workforce to meet the challenge, in fierce competition in the market ahead waves.
JINDUN will be your best business partner.

  W hat We Have
China Leading Producing Technology
Super High Quality
Competitive Price
Big Production Ability
Fast Delivery
Ten Years' Export Experience
Excellent Sale and After-sale Service
OEM Available
  F AQ
1.Are you a factory or a trading company?
JINDUN EQUIPMENT CO., LTD. is a professional Manufacturer of temperature control equipment since 2005.
2.Can I be your agent?
Yes, welcome to deep cooperation. We have big promotion of JINDUN brand in the market now.
For the details please contact with our overseas manager.
 3.Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
4.Are the products tested before shipping?
Yes, all of our products were qualified before delivery. We test every batch every day.
5.What's your quality guarantee?
We will offer client one year quality guarantee time.
6.What's benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.

JINDUN Equipment ’ s super high quality products will bring you success business.
Model No. ISO9001:2008 high quality Temperature control equipment
Place of Origin Qingzhou City, Shandong Province, China
Brand Name JINDUN Or OEM
Products range Exhaust Fan, ventilation cooling Fan, Evaporative cooling pad, Air condition generator, Hot air stoven, Hot water Boiler.
Certificate ISO9001; CE;TUV; SGS
Main Market Asia, Africa, South America, Middle East, Europe, etc
Payment term T/T,L/C
MOQ 1 * 20GP
Delivery Time 15 days
